Edge detection sensors are essential components in the modern automation industry. These sensors enable the identification of the position, movement, and completion of actions for parts within mechanical or electrical systems. By accurately detecting the endpoints of movements, automated machines and systems can operate more intelligently, efficiently, and safely.
These sensors play a critical role in various industries, performing precise measurements of edges, widths, and positions, which allow production processes to meet high standards of accuracy, speed, and safety. The new generation of sensors, such as Baumer’s OE60 and OE40 series, offers remote control, easy installation, and adaptability for a wide range of materials.
The sensors combine exceptional precision with easy installation and minimal maintenance. Additionally, standard interfaces for protocols like IO-Link and EtherCat allow real-time data collection, change analysis, and remote management through advanced digital interfaces.
?How Do These Sensors Work
Edge sensors operate using optical or electrical technology to accurately detect the position of an object’s or material’s edge. Optical sensors, such as Baumer’s OE series, utilize either a transmitter-receiver method or a through-beam method that detects the edge by blocking or altering the beam. These sensors are designed for high precision, capable of distinguishing edges even over large distances, including transparent materials. They respond quickly and provide single-micron precision, enabling continuous and accurate measurement in fast, complex production lines.
Industries Using Edge Detection Sensors
Edge detection sensors are used across a wide range of industries, including automotive, food, electronics, and pharmaceuticals. Examples include:

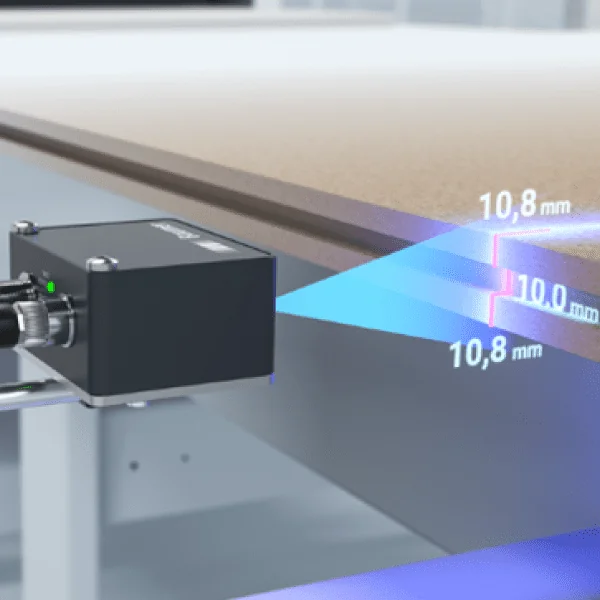

– Wood Industry: In wood processing, two-dimensional profile sensors verify the dimensional accuracy of wood panels, detecting deviations in thickness or width of “male and female” floor panels. This allows for early wear detection and prevents deviations in assembly.

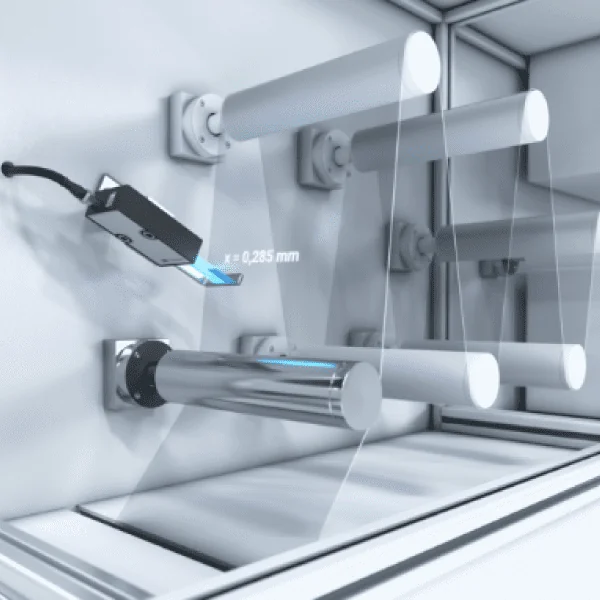

– Battery Industry: In battery cell manufacturing, precise sensors ensure alignment of components like anodes, cathodes, and insulating tapes during assembly. This precision is critical to the final quality of the batteries, with Baumer sensors providing edge control with repeat accuracy down to 1 micron, contributing to durable and high-quality outcomes.

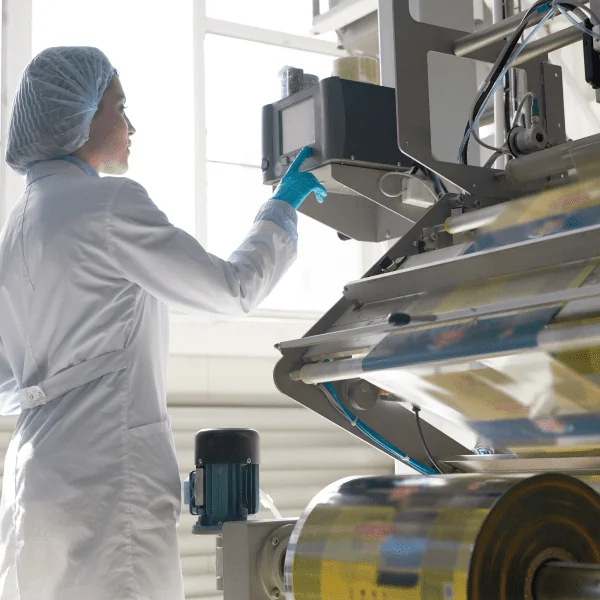

– Packaging Industry: For complex tasks, like packaging transparent films, edge sensors with unique measurement modes can measure edges of thin, transparent films. This ensures precise quality control in the packaging process, guaranteeing that every package is intact.
– Automotive Industry: These sensors are widely used in automotive manufacturing and assembly lines. In automated systems for assembling car parts, sensors ensure that every part reaches the correct position, improving accuracy and reducing errors. BMW production lines, for instance, use edge sensors with robots to ensure that car components are assembled precisely and without errors.
– Food Industry: In this sector, edge sensors are used in packaging and transport processes to identify the exact location of products and packages, especially in environments where accuracy and high speed are required.
– Electronics Industry: During the assembly of electronic components, edge sensors ensure that each component reaches the correct assembly position, contributing to efficiency, accuracy, and preventing damage to delicate components.
– Pharmaceutical Industry: Edge detection sensors are critical in packaging and quality control processes in the pharmaceutical industry. They ensure that every package is properly sealed and that products are transported and packaged without deviations or issues.
Advantages of Using Edge Detection Sensors
– Accuracy and Speed: These sensors provide instant and accurate responses, enabling quick actions and preventing errors.
– Enhanced Safety: By detecting precise positioning, these sensors help prevent collisions or assembly errors that could lead to significant malfunctions.
– Durability and Reliability: Edge detection sensors are designed to withstand challenging industrial environments, including heat, humidity, and vibrations, ensuring stable and reliable operation over time.
In conclusion, edge detection sensors have become an indispensable tool in all automated systems across various industries. With notable advantages in reliability, precision, and safety, they allow for the advancement of industrial technology and elevate the industry to new levels of efficiency and control.
